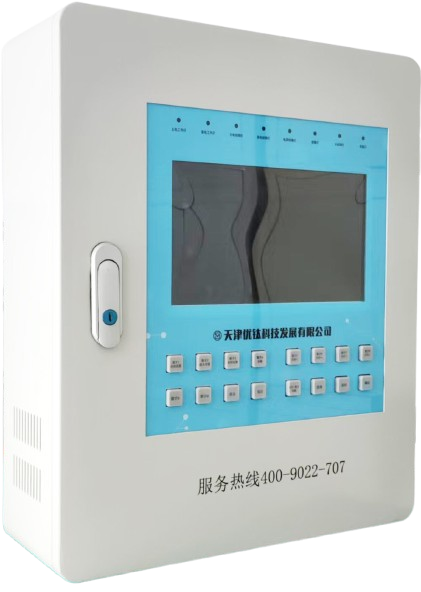

UTCM01A Bus type Gas Alarm Controller

Model: UTCM01A bus type

Working voltage: AC220V/50Hz (backup power: battery 12V/7AH * 2)

Power: Maximum power without load 12W; maximum power with full load 120W

Alarm mode: sound, light, and LCD status display

Linkage output: 1 220V active output, 2 passive selectable switch outputs, 1 passive switch total output

Environmental temperature: -10 ℃~+55

Installation method: Wall mounted

Communication method: Two RS485 four wire bus communication interfaces, capable of communicating up to 128 address point detectors in total. Two RS485 upload communication interfaces, default to Modbus RTU upload protocol (customizable)

Connection method: Each circuit interface includes power interfaces V and G, communication interfaces A and B

Overall size: 480 * 400 * 140mm

Weight: 13KG
